NTA JEE Main 26th August 2021 Shift 2 - Physics

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 1

Report

If the length of the pendulum in pendulum clock increases by 0.1%, then the error in time per day is:

A

43.2 s

B

8.64 s

C

86.4 s

D

4.32 s

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 2

Report

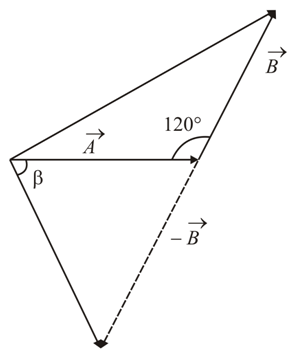

The angle between vector $$\left(\vec{A}\right)$$ and $$\left(\vec{A} - \vec{B}\right)$$ is:

A

$$\tan^{-1}\left(\frac{B\cos\theta}{A - B\sin\theta}\right)$$

B

$$\tan^{-1}\left(\frac{\sqrt{3}B}{2A - B}\right)$$

C

$$\tan^{-1}\left(\frac{-\frac{B}{2}}{A - B\frac{\sqrt{3}}{2}}\right)$$

D

$$\tan^{-1}\left(\frac{A}{0.7B}\right)$$

View Solution Video Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 3

Report

Match List - I with List - II:
        List - I                                    List - II
a. Magnetic induction        i.   $$ML^2T^{-2}A^{-1}$$
b. Magnetic flux                  ii.  $$M^0L^{-1}A$$
c. Magnetic permeability   iii. $$MT^{-2}A^{-1}$$
d. Magnetization                 iv.  $$MLT^{-2}A^{-2}$$
Choose the most appropriate answer from the options given below:

A

(a)-(iii), (b)-(ii), (c)-(iv), (d)-(i)

B

(a)-(iii), (b)-(i), (c)-(iv), (d)-(ii)

C

(a)-(ii), (b)-(iv), (c)-(i), (d)-(iii)

D

(a)-(ii), (b)-(i), (c)-(iv), (d)-(iii)

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 4

Report

A particle of mass $$m$$ is suspended from a ceiling through a string of length $$L$$. The particle moves in a horizontal circle of radius $$r$$ such that $$r = \frac{L}{\sqrt{2}}$$. The speed of particle will be:

A

$$\sqrt{rg}$$

B

$$\sqrt{2rg}$$

C

$$\sqrt{\frac{rg}{2}}$$

D

$$2\sqrt{rg}$$

View Solution Video Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 5

Report

A bomb is dropped by a fighter plane flying horizontally. To an observer sitting in the plane, the trajectory of the bomb is a:

A

straight line vertically down the plane

B

parabola in a direction opposite to the motion of plane

C

parabola in the direction of motion of plane

D

hyperbola

View Solution Video Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 6

Report

The solid cylinder of length 80 cm and mass $$M$$ has a radius of 20 cm. Calculate the density of the material used if the moment of inertia of the cylinder about an axis $$CD$$ parallel to $$AB$$ as shown in figure is 2.7 kg m$$^2$$.

A

$$1.49 \times 10^2$$ kg m$$^{-3}$$

B

$$7.5 \times 10^1$$ kg m$$^{-3}$$

C

14.9 kg m$$^{-3}$$

D

$$7.5 \times 10^2$$ kg m$$^{-3}$$

View Solution Video Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 7

Report

Two blocks of masses 3 kg and 5 kg are connected by a metal wire going over a smooth pulley. The breaking stress of the metal is $$\frac{24}{\pi} \times 10^2$$ N m$$^{-2}$$. What is the minimum radius of the wire?

(take g = 10 m s$$^{-2}$$)

A

1250 cm

B

1.25 cm

C

125 cm

D

12.5 cm

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 8

Report

The temperature of equal masses of three different liquids $$x$$, $$y$$ and $$z$$ are 10°C, 20°C and 30°C respectively. The temperature of mixture when $$x$$ is mixed with $$y$$ is 16°C and that when $$y$$ is mixed with $$z$$ is 26°C. The temperature of mixture when $$x$$ and $$z$$ are mixed will be:

A

25.62°C

B

20.28°C

C

28.32°C

D

23.84°C

View Solution Video Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 9

Report

A refrigerator consumes an average 35 W power to operate between temperature -10°C to 25°C. If there is no loss of energy then how much average heat per second does it transfer?

A

350 J s$$^{-1}$$

B

298 J s$$^{-1}$$

C

263 J s$$^{-1}$$

D

35 J s$$^{-1}$$

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 10

Report

A cylindrical container of volume $$4.0 \times 10^{-3}$$ m$$^3$$ contains one mole of hydrogen and two moles of carbon dioxide. Assume the temperature of the mixture is 400 K. The pressure of the mixture of gases is:
[Take gas constant as 8.3 J mol$$^{-1}$$ K$$^{-1}$$]

A

$$24.9 \times 10^3$$ Pa

B

$$249 \times 10^1$$ Pa

C

$$24.9 \times 10^5$$ Pa

D

24.9 Pa

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 11

Report

The two thin coaxial rings, each of radius $$a$$ and having charges $$+Q$$ and $$-Q$$ respectively are separated by a distance of $$s$$. The potential difference between the centres of the two rings is:

A

$$\frac{Q}{2\pi\varepsilon_0}\left[\frac{1}{a} - \frac{1}{\sqrt{s^2 + a^2}}\right]$$

B

$$\frac{Q}{4\pi\varepsilon_0}\left[\frac{1}{a} - \frac{1}{\sqrt{s^2 + a^2}}\right]$$

C

$$\frac{Q}{4\pi\varepsilon_0}\left[\frac{1}{a} + \frac{1}{\sqrt{s^2 + a^2}}\right]$$

D

$$\frac{Q}{2\pi\varepsilon_0}\left[\frac{1}{a} + \frac{1}{\sqrt{s^2 + a^2}}\right]$$

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 12

Report

A parallel-plate capacitor with plate area $$A$$ has separation $$d$$ between the plates. Two dielectric slabs of dielectric constant $$K_1$$ and $$K_2$$ of same area $$\frac{A}{2}$$ and thickness $$\frac{d}{2}$$ are inserted in the space between the plates. The capacitance of the capacitor will be given by:

A

$$\frac{\varepsilon_0 A}{d}\left(\frac{1}{2} + \frac{K_1 K_2}{K_1 + K_2}\right)$$

B

$$\frac{\varepsilon_0 A}{d}\left(\frac{1}{2} + \frac{2(K_1 + K_2)}{K_1 K_2}\right)$$

C

$$\frac{\varepsilon_0 A}{d}\left(\frac{1}{2} + \frac{K_1 + K_2}{K_1 K_2}\right)$$

D

$$\frac{\varepsilon_0 A}{d}\left(\frac{1}{2} + \frac{K_1 K_2}{2(K_1 + K_2)}\right)$$

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 13

Report

An electric bulb of 500 W at 100 V is used in a circuit having a 200 V supply. Calculate the resistance $$R$$ to be connected in series with the bulb so that the power delivered by the bulb is 500 W.

A

30 $$\Omega$$

B

5 $$\Omega$$

C

20 $$\Omega$$

D

10 $$\Omega$$

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 14

Report

If you are provided a set of resistances, 2 $$\Omega$$, 4 $$\Omega$$, 6 $$\Omega$$ and 8 $$\Omega$$. Connect these resistances to obtain an equivalent resistance of $$\frac{46}{3}$$ $$\Omega$$.

A

2 $$\Omega$$ and 6 $$\Omega$$ are in parallel with 4 $$\Omega$$ and 8 $$\Omega$$ in series

B

4 $$\Omega$$ and 6 $$\Omega$$ are in parallel with 2 $$\Omega$$ and 8 $$\Omega$$ in series

C

2 $$\Omega$$ and 4 $$\Omega$$ are in parallel with 6 $$\Omega$$ and 8 $$\Omega$$ in series

D

6 $$\Omega$$ and 8 $$\Omega$$ are in parallel with 2 $$\Omega$$ and 4 $$\Omega$$ in series

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 15

Report

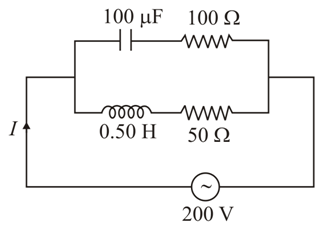

In the given circuit the AC source has $$\omega = 100$$ rad s$$^{-1}$$. Considering the inductor and capacitor to be ideal, what will be the current $$I$$ flowing through the circuit?

A

5.9 A

B

6 A

C

0.94 A

D

3.16 A

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 16

Report

A light beam is described by $$E = 800 \sin\omega\left(t - \frac{x}{c}\right)$$. An electron is allowed to move normal to the propagation of light beam with a speed of $$3 \times 10^7$$ m s$$^{-1}$$. What is the maximum magnetic force exerted on the electron?

A

$$1.28 \times 10^{-21}$$ N

B

$$12.8 \times 10^{-18}$$ N

C

$$1.28 \times 10^{-18}$$ N

D

$$12.8 \times 10^{-17}$$ N

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 17

Report

The de-Broglie wavelength of a particle having kinetic energy $$E$$ is $$\lambda$$. How much extra energy must be given to this particle so that the de-Broglie wavelength reduces to 75% of the initial value?

A

$$E$$

B

$$\frac{7E}{9}$$

C

$$\frac{16E}{9}$$

D

$$\frac{E}{9}$$

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 18

Report

At time $$t = 0$$, a material is composed of two radioactive atoms $$A$$ and $$B$$, where $$N_A(0) = 2N_B(0)$$. The decay constant of both kind of radioactive atoms is $$\lambda$$. However, $$A$$ disintegrates to $$B$$ and $$B$$ disintegrates to $$C$$. Which of the following figures represents the evolution of $$\frac{N_B(t)}{N_B(0)}$$ with respect to time $$t$$?

A

B

C

D

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 19

Report

Four NOR gates are connected as shown in figure. The truth table for the given figure is:

A

B

C

D

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 20

Report

A transmitting antenna at top of a tower has a height of 50 m, and the height of receiving antenna is 80 m. What is the range of communication for the line of sight (LOS) mode?
[use radius of the earth = 6400 km]

A

80.2 km

B

144.1 km

C

57.28 km

D

45.5 km

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 21

Report

The acceleration due to gravity is found up to an accuracy of 4% on a planet. The energy supplied to a simple pendulum of known mass $$m$$ to undertake oscillations of time period $$T$$ is being estimated. If time period is measured to an accuracy of 3%, the accuracy to which $$E$$ is known is _________ %

Backspace
789
456
123
0.-
Clear All

Submit

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 22

Report

The coefficient of static friction between two blocks is 0.5 and the table is smooth. The maximum horizontal force that can be applied to move the blocks together is _________ N (take $$g = 10$$ m s$$^{-2}$$)

Backspace
789
456
123
0.-
Clear All

Submit

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 23

Report

Two simple harmonic motions are represented by the equations $$x_1 = 5\sin\left(2\pi t + \frac{\pi}{4}\right)$$ and $$x_2 = 5\sqrt{2}(\sin 2\pi t + \cos 2\pi t)$$. The amplitude of the second motion is _________ times the amplitude in the first motion.

Backspace
789
456
123
0.-
Clear All

Submit

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 24

Report

Two waves are simultaneously passing through a string and their equations are:
$$y_1 = A_1 \sin k(x - vt)$$, $$y_2 = A_2 \sin k(x - vt + x_0)$$. Given amplitudes $$A_1 = 12$$ mm and $$A_2 = 5$$ mm, $$x_0 = 3.5$$ cm and wave number $$k = 6.28$$ cm$$^{-1}$$. The amplitude of resulting wave will be _________ mm.

Backspace
789
456
123
0.-
Clear All

Submit

View Solution Video Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 25

Report

If the maximum value of accelerating potential provided by a radio frequency oscillator is 12 kV. The number of revolution made by a proton in a cyclotron to achieve one sixth the speed of light is:
[$$m_p = 1.67 \times 10^{-27}$$ kg, $$e = 1.6 \times 10^{-19}$$ C, Speed of light = $$3 \times 10^8$$ m s$$^{-1}$$]

Backspace
789
456
123
0.-
Clear All

Submit

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 26

Report

A coil in the shape of an equilateral triangle of side 10 cm lies in a vertical plane between the pole pieces of permanent magnet producing a horizontal magnetic field 20 mT. The torque acting on the coil when a current of 0.2 A is passed through it and its plane becomes parallel to the magnetic field will be $$\sqrt{x} \times 10^{-5}$$ Nm. The value of $$x$$ is _________

Backspace
789
456
123
0.-
Clear All

Submit

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 27

Report

A circular coil of radius 8.0 cm and 20 turns is rotated about its vertical diameter with an angular speed of 50 rad s$$^{-1}$$ in a uniform horizontal magnetic field of $$3.0 \times 10^{-2}$$ T. The maximum emf induced in the coil will be _________ $$\times 10^{-2}$$ volt (rounded off to the nearest integer).

Backspace
789
456
123
0.-
Clear All

Submit

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 28

Report

An object is placed at a distance of 12 cm from a convex lens. A convex mirror of focal length 15 cm is placed on another side of the lens at 8 cm as shown in the figure. The image of the object coincides with the object.

When the convex mirror is removed, a real and inverted image is formed at a position. The distance of the image from the object will be _________ cm

Backspace
789
456
123
0.-
Clear All

Submit

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 29

Report

A source of light is placed in front of a screen. The intensity of light on the screen is $$I$$. Two Polaroids $$P_1$$ and $$P_2$$ are so placed in between the source of light and screen that the intensity of light on the screen is $$\frac{I}{2}$$. Then the $$P_2$$, should be rotated by an angle of _________ (degrees) so that the intensity of light on the screen becomes $$\frac{3I}{8}$$.

Backspace
789
456
123
0.-
Clear All

Submit

View Solution

NTA JEE Main 26th August 2021 Shift 2 - Physics - Question 30

Report

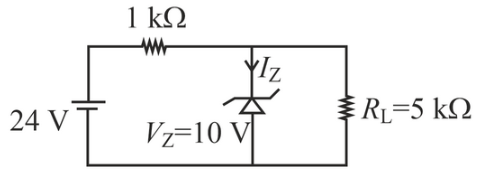

For the given circuit, the power across zener diode is _________ mW.

Backspace
789
456
123
0.-
Clear All

Submit

View Solution
