NTA JEE Main 8th April 2023 Shift 2 - Physics

Match List I with List II

Given below are two statements:
Statement I: Area under velocity-time graph gives the distance travelled by the body in a given time.
Statement II: Area under acceleration-time graph is equal to the change in velocity in the given time.
In the light of given statements, choose the correct answer from the options given below.

The trajectory of projectile, projected from the ground is given by $$y = x - \frac{x^2}{20}$$. Where $$x$$ and $$y$$ are measured in meter. The maximum height attained by the projectile will be.

A bullet of mass 0.1 kg moving horizontally with speed 400 m s$$^{-1}$$ hits a wooden block of mass 3.9 kg kept on a horizontal rough surface. The bullet gets embedded into the block and moves 20 m before coming to rest. The coefficient of friction between the block and the surface is

The orbital angular momentum of a satellite is $$\mathbf{L}$$, when it is revolving in a circular orbit at height h from earth surface. If the distance of satellite from the earth centre is increased by eight times to its initial value, then the new angular momentum will be

The acceleration due to gravity at height $$h$$ above the earth if $$h \ll R$$ (Radius of earth) is given by

A hydraulic automobile lift is designed to lift vehicles of mass 5000 kg. The area of cross section of the cylinder carrying load is 250 cm$$^2$$. The maximum pressure the smaller piston would have to bear is [Assume $$g = 10$$ m s$$^{-2}$$]

Work done by a Carnot engine operating between temperatures 127$$^\circ$$C and 27$$^\circ$$C is 2 kJ. The amount of heat transferred to the engine by the reservoir is:

The temperature at which the kinetic energy of oxygen molecules becomes double than its value at 27$$^\circ$$C is

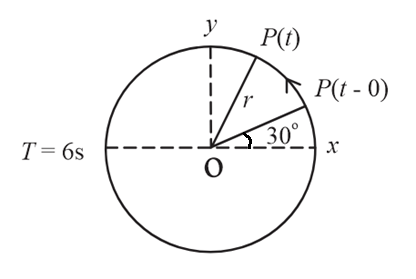

For particle $$P$$ revolving round the centre $$O$$ with radius of circular path $$r$$ and regular velocity $$\omega$$, as shown in below figure, the projection of $$OP$$ on the $$x$$-axis at time $$t$$ is

Electric potential at a point $$P$$ due to a point charge of $$5 \times 10^{-9}$$ C is 50 V. The distance of $$P$$ from the point charge is:
(Assume, $$\frac{1}{4\pi\varepsilon_0} = 9 \times 10^9$$ N m$$^2$$ C$$^{-2}$$)

The equivalent resistance between A and B as shown in figure is:

Given below are two statements: one is labelled as Assertion A and the other is labelled as Reason R.
Assertion A: Electromagnets are made of soft iron.
Reason R: Soft iron has high permeability and low retentivity.
In the light of above statements, choose the most appropriate answer from the options given below.

An emf of 0.08 V is induced in a metal rod of length 10 cm held normal to a uniform magnetic field of 0.4 T, when move with a velocity of:

The waves emitted when a metal target is bombarded with high energy electrons are

The width of fringe is 2 mm on the screen in a double slit experiment for the light of wavelength of 400 nm. The width of the fringe for the light of wavelength 600 nm will be:

In photoelectric effect
A. The photocurrent is proportional to the intensity of the incident radiation.
B. Maximum kinetic energy with which photoelectrons are emitted depends on the intensity of incident light.
C. Max K.E. with which photoelectrons are emitted depends on the frequency of incident light.
D. The emission of photoelectrons require a minimum threshold intensity of incident radiation.
E. Max K.E. of the photoelectrons is independent of the frequency of the incident light.
Choose the correct option from the options given below:

A radio active material is reduced to $$\frac{1}{8}$$ of its original amount in 3 days. If $$8 \times 10^{-3}$$ kg of the material is left after 5 days the initial amount of the material is

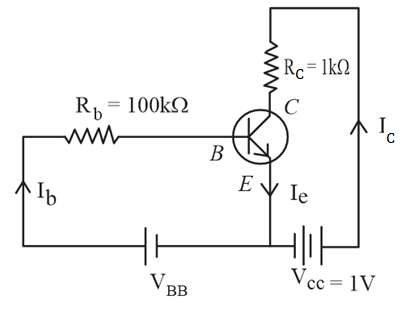

For a given transistor amplifier circuit in CE configuration $$V_{CC} = 1$$ V, $$R_C = 1$$ k$$\Omega$$, $$R_b = 100$$ k$$\Omega$$ and $$\beta = 100$$. Value of base current $$I_b$$ is

The power radiated from a linear antenna of length $$l$$ is proportional to (Given, $$\lambda$$ = Wavelength of wave):

A body of mass 5 kg is moving with a momentum of 10 kg m s$$^{-1}$$. Now a force of 2 N acts on the body in the direction of its motion for 5 s. The increase in the Kinetic energy of the body is _______ J.

A hollow spherical ball of uniform density rolls up a curved surface with an initial velocity 3 m s$$^{-1}$$ (as shown in figure). Maximum height with respect to the initial position covered by it will be _______ cm.
(take, $$g = 10$$ m s$$^{-2}$$)

A steel rod of length 1 m and cross-sectional area $$10^{-4}$$ m$$^2$$ is heated from 0$$^\circ$$C to 200$$^\circ$$C without being allowed to extend or bend. The compressive tension produced in the rod is _______ $$\times 10^4$$ N. (Given Young's modulus of steel $$= 2 \times 10^{11}$$ N m$$^{-2}$$, coefficient of linear expansion $$= 10^{-5}$$ K$$^{-1}$$)

A guitar string of length 90 cm vibrates with a fundamental frequency of 120 Hz. The length of the string producing a fundamental of 180 Hz will be _______ cm.

A 600 pF capacitor is charged by 200 V supply. It is then disconnected from the supply and is connected to another uncharged 600 pF capacitor. Electrostatic energy lost in the process is _______ $$\mu$$J.

The number density of free electrons in copper is nearly $$8 \times 10^{28}$$ m$$^{-3}$$. A copper wire has its area of cross-section $$= 2 \times 10^{-6}$$ m$$^2$$ and is carrying a current of 3.2 A. The drift speed of the electrons is _______ $$\times 10^{-6}$$ m s$$^{-1}$$.

The ratio of magnetic field at the centre of a current carrying coil of radius $$r$$ to the magnetic field at distance $$r$$ from the centre of coil on its axis is $$\sqrt{x}$$ : 1. The value of $$x$$ is _____.

A series combination of resistor of resistance 100 $$\Omega$$, inductor of inductance 1 H and capacitor of capacitance 6.25 $$\mu$$F is connected to an ac source. The quality factor of the circuit will be _____.

Two transparent media having refractive indices 1.0 and 1.5 are separated by a spherical refracting surface of radius of curvature 30 cm. The centre of curvature of surface is towards denser medium and a point object is placed on the principal axis in rarer medium at a distance of 15 cm from the pole of the surface. The distance of image from the pole of the surface is _______ cm.

The ratio of wavelength of spectral lines $$H_\alpha$$ and $$H_\beta$$ in the Balmer series is $$\frac{x}{20}$$. The value of $$x$$ is _____.
