Question 20

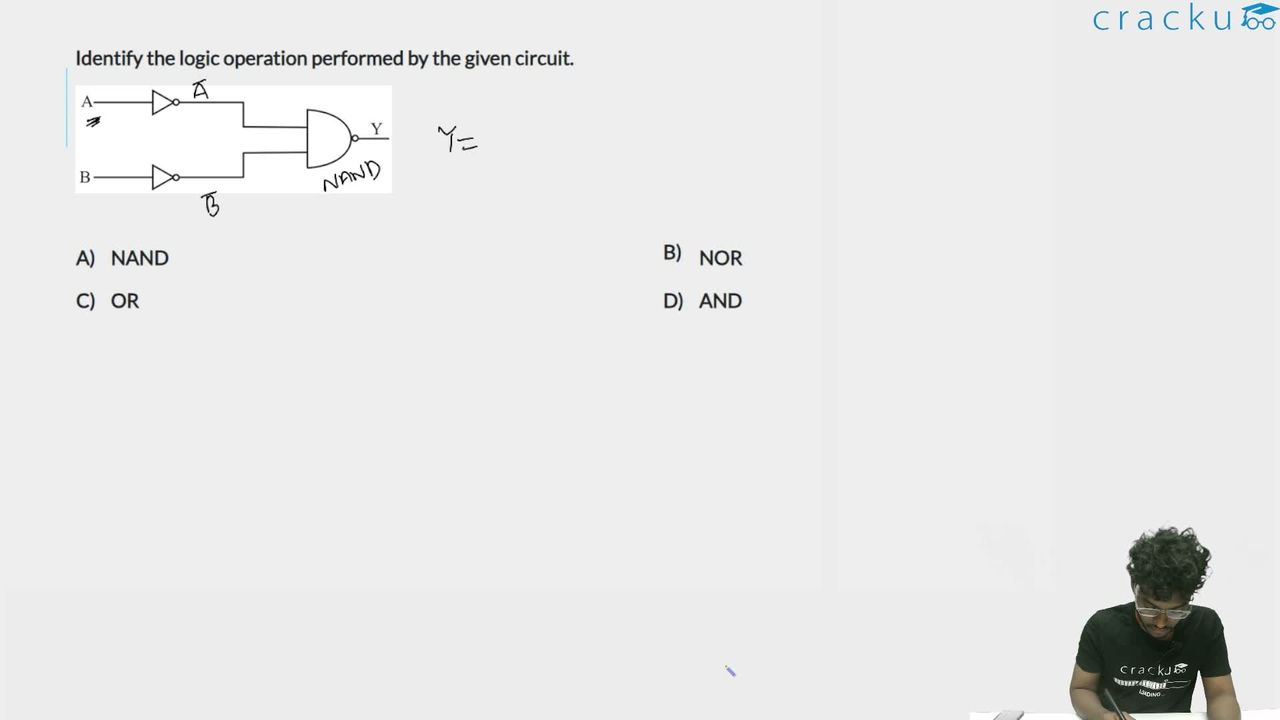

Identify the logic operation performed by the given circuit.

Name: Identify the logic operation performed by the given circuit.
Uploaded: 2026-06-14T11:49:38.021656+05:30
Duration: 1 min 11 s
Description: Identify the logic operation performed by the given circuit.

Solution

$$\text{Top input} = \bar{A}$$

$$\text{Bottom input} = \bar{B}$$

Output $$Y$$ from the NAND gate configuration: $$Y = \overline{\bar{A} \cdot \bar{B}}$$

Applying De Morgan's Law ($$\overline{X \cdot Y} = \bar{X} + \bar{Y}$$):

$$Y = \overline{\bar{A}} + \overline{\bar{B}}$$

$$\implies Y = A + B \quad (\text{OR gate operation})$$
