Question 12

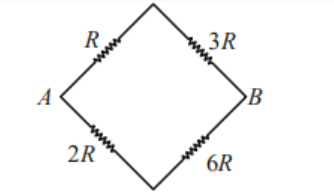

The equivalent resistance between $$A$$ and $$B$$ of the network shown in figure


Solution


(Balanced Wheatstone bridge)

$$\frac{1}{R_{\text{eq}}} = \frac{1}{4R} + \frac{1}{8R}$$

$$\frac{1}{R_{\text{eq}}} = \frac{3}{8R}$$

$$R_{\text{eq}} = \frac{8R}{3}$$
