Question 46

The resistance of the series combination of two resistances is $$S$$. When they are joined in parallel through total resistance is $$P$$. If $$S = nP$$, then the minimum possible value of $$n$$ is

Solution

Let the two resistances be $$R_1$$ and $$R_2$$.

The equivalent resistance in the series combination is given by:

$$S = R_1 + R_2$$

The equivalent resistance in the parallel combination is given by:

$$P = \frac{R_1 R_2}{R_1 + R_2}$$

According to the given condition:

$$S = nP$$

Substitute the expressions for $$S$$ and $$P$$ into the equation:

$$R_1 + R_2 = n \left( \frac{R_1 R_2}{R_1 + R_2} \right)$$

Multiply both sides by $$(R_1 + R_2)$$:

$$(R_1 + R_2)^2 = n R_1 R_2$$

Expand the left side:

$$R_1^2 + R_2^2 + 2R_1 R_2 = n R_1 R_2$$

Rearrange the terms to form a quadratic equation in terms of the ratio of the resistances. Let us divide the entire equation by $$R_2^2$$:

$$\left(\frac{R_1}{R_2}\right)^2 + 1 + 2\left(\frac{R_1}{R_2}\right) = n \left(\frac{R_1}{R_2}\right)$$

Let $$x = \frac{R_1}{R_2}$$. The equation becomes:

$$x^2 + 2x + 1 = nx$$

$$x^2 - (n - 2)x + 1 = 0$$

For the resistances to be physically valid real numbers, their ratio $$x$$ must be a real number. Therefore, the discriminant of this quadratic equation must be greater than or equal to zero ($$\Delta \ge 0$$):

$$[-(n - 2)]^2 - 4(1)(1) \ge 0$$

$$(n - 2)^2 - 4 \ge 0$$

$$(n - 2)^2 \ge 4$$

Taking the square root of both sides gives two mathematical conditions:

$$n - 2 \ge 2 \quad \text{or} \quad n - 2 \le -2$$

$$n \ge 4 \quad \text{or} \quad n \le 0$$

Since physical resistance values are strictly positive, both the series equivalent $$S$$ and parallel equivalent $$P$$ must be positive. This dictates that the multiplier $$n$$ must also be positive. Therefore, we discard the $$n \le 0$$ condition.

This leaves us with:

$$n \ge 4$$

The minimum possible value of $$n$$ is 4. (This minimum occurs when $$R_1 = R_2$$).

Get AI Help

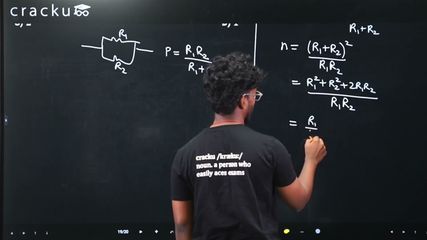

Video Solution
