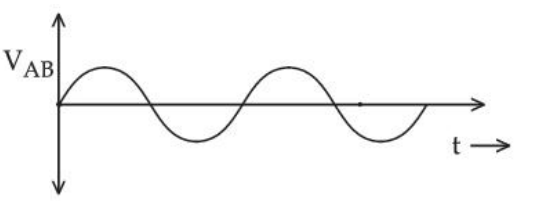

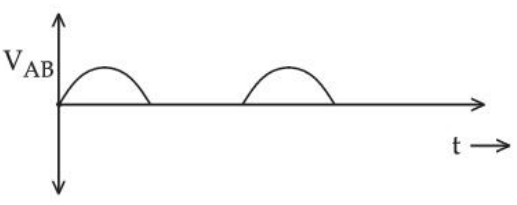

In the circuit shown here, assuming threshold voltage of diode is negligibly small, then voltage $$V_{AB}$$ is correctly represented by :

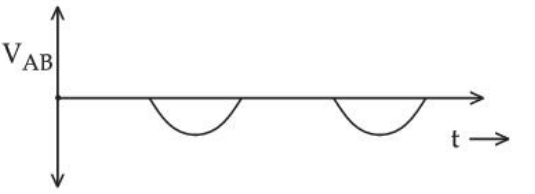

Due to the diode, the current will be allowed only along B to A through the resistor. Hence $$V_\text{AB}$$ will have only negative values i.e., the following graph represents the output voltage $$V_\text{AB}$$.
