Question 30

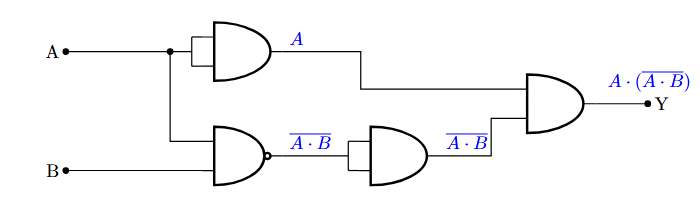

Identify the correct truth table of the given logic circuit.


Solution

Share

$$ = A(\overline{A} + \overline{B})$$
$$ = A(\overline{B})$$

Hence, (A = 1) and (B = 0) for (Y = 1). Otherwise, (Y = 0).
Hence, option (B) is correct.
