Question 29

The truth table for the circuit given in the figure is:

Solution

Share

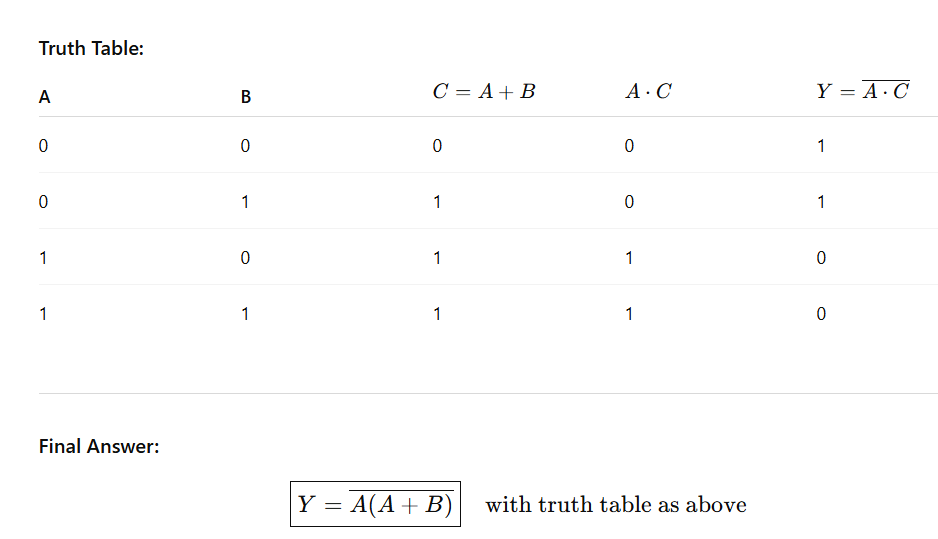

Given Circuit Analysis:

  • First gate: OR gate

    C=A + B

  • Second gate: NAND gate with inputs A and C

    $$Y=\overline{A\cdot C}$$
