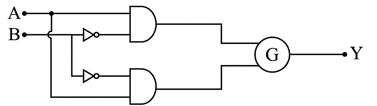

The output after each AND gate is $$ A \cdot \overline{B} $$ which means the same input to G.
By putting values of $$ A $$ and $$ B $$ from the truth table and by eliminating options, we get G to be a NOR gate.

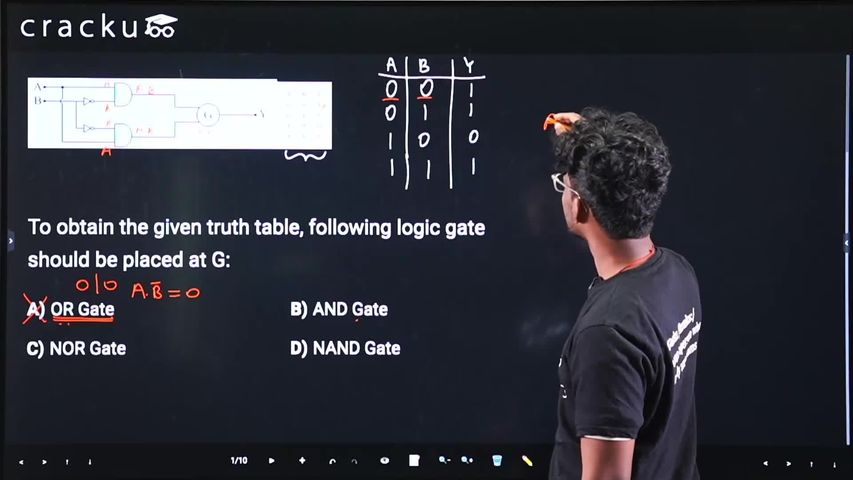

Click on the Email ☝️ to Watch the Video Solution
