Question 19

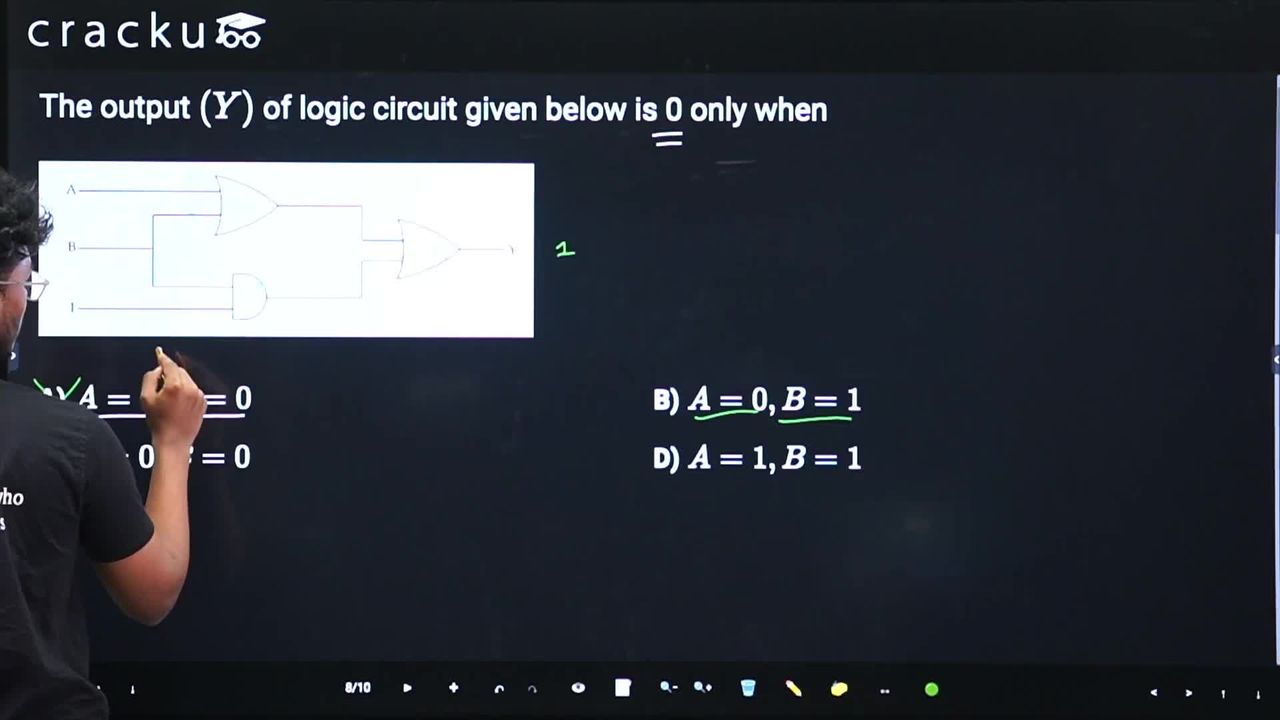

The output $$(Y)$$ of logic circuit given below is 0 only when

Name: The output (Y) of logic circuit given below is 0 only when
Uploaded: 2026-05-19T12:24:24.885210+05:30
Duration: 2 min 3 s
Description: The output (Y) of logic circuit given below is 0 only when

Solution

output of the top OR gate is A+B
output of the bottom AND gate is B(since B.1=B)
now these two are the inputs fed to final OR gate whose output is A+B+B
which is equal to A+B
Now A+B is 0 only when both A=0 and B=0
