Question 43

Refer to the logic circuit given below. For two inputs $$(A = 1, B = 1)$$ and $$(A = 0, B = 1)$$, output (Y) will be __________.

Name: Refer to the logic circuit given below. For two inputs (A = 1, B = 1) and (A = 0, B = 1), output (Y) will be __________.
Uploaded: 2026-05-07T11:58:40.795289+05:30
Duration: 52 s

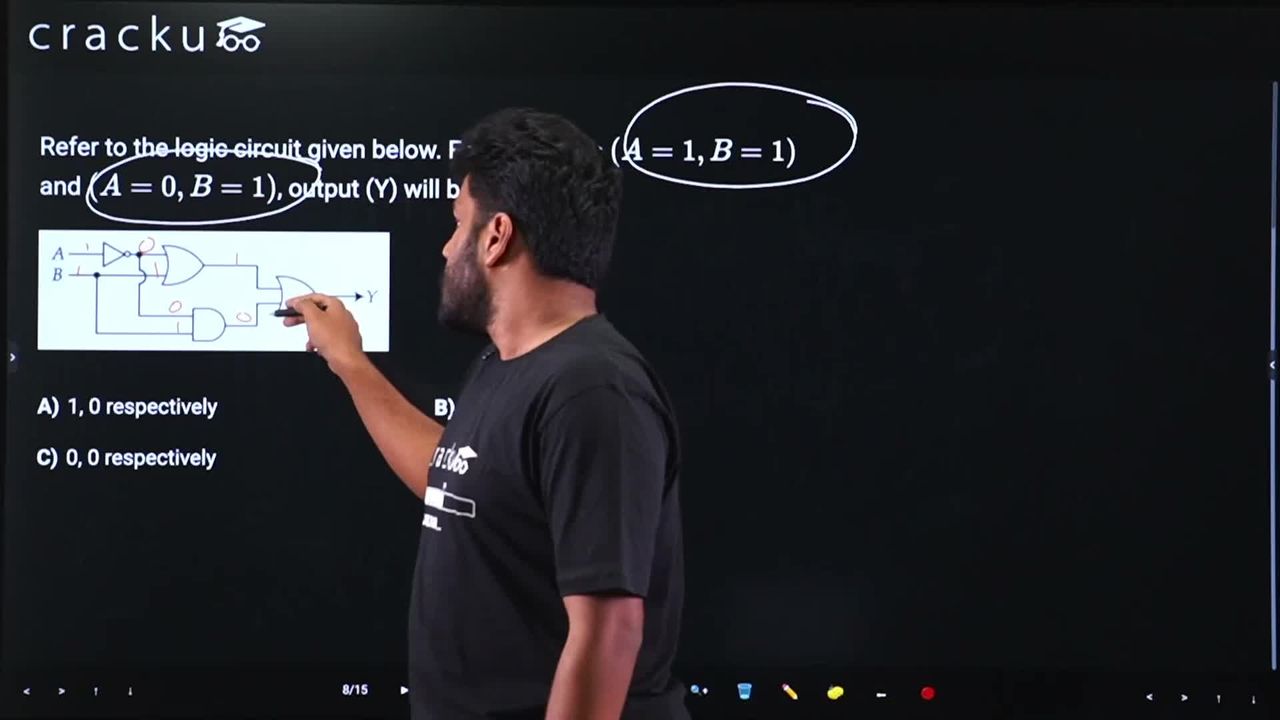

Description: Refer to the logic circuit given below. For two inputs (A = 1, B = 1) and (A = 0, B = 1), output (Y) will be __________.

Solution

$$Y = \overline{(\bar{A} + B) + (A \cdot B)}$$

The outputs for $$(A=1, B=1)$$ and $$(A=0, B=1)$$ are both 0.
