Question 20

The block of mass $$M$$ moving on the frictionless horizontal surface collides with a spring of spring constant $$K$$ and compresses it by length $$L$$. The maximum momentum of the block after collision is

79e6c491-01b9-414f-af27-d059458df5b89142317973412964140

Solution

The block moves on a friction-free horizontal surface, so mechanical energy is conserved during its interaction with the ideal (mass-less) spring.

Step 1 : Relate the initial kinetic energy to the maximum spring potential energy.
When the block first touches the spring its speed is $$v_0$$. At the instant the spring is compressed by the maximum amount $$L$$, the block momentarily comes to rest, so its kinetic energy becomes zero and the entire mechanical energy is stored in the spring: $$\frac12 M v_0^{\,2}= \frac12 K L^{\,2}\quad -(1)$$

Step 2 : Obtain the initial speed.
From $$-(1)$$, $$v_0 = L\sqrt{\frac{K}{M}}\quad -(2)$$

Step 3 : Maximum momentum after the collision.
As the spring re-expands, it gives the block the same speed it had just before contact (but in the opposite direction).
Thus the largest magnitude of momentum during or after the collision equals the magnitude of the initial momentum: $$p_{\max}= M v_0$$ Substituting $$-(2)$$, $$p_{\max}=M\left(L\sqrt{\frac{K}{M}}\right)=L\sqrt{M K}\quad -(3)$$

Step 4 : Match with the given options.
Expression $$L\sqrt{M K}$$ is exactly the quantity written in Option A (after rearrangement of the factors inside the square root).

Therefore, the correct choice is:
Option A which is: $$L\sqrt{MK}$$

Get AI Help

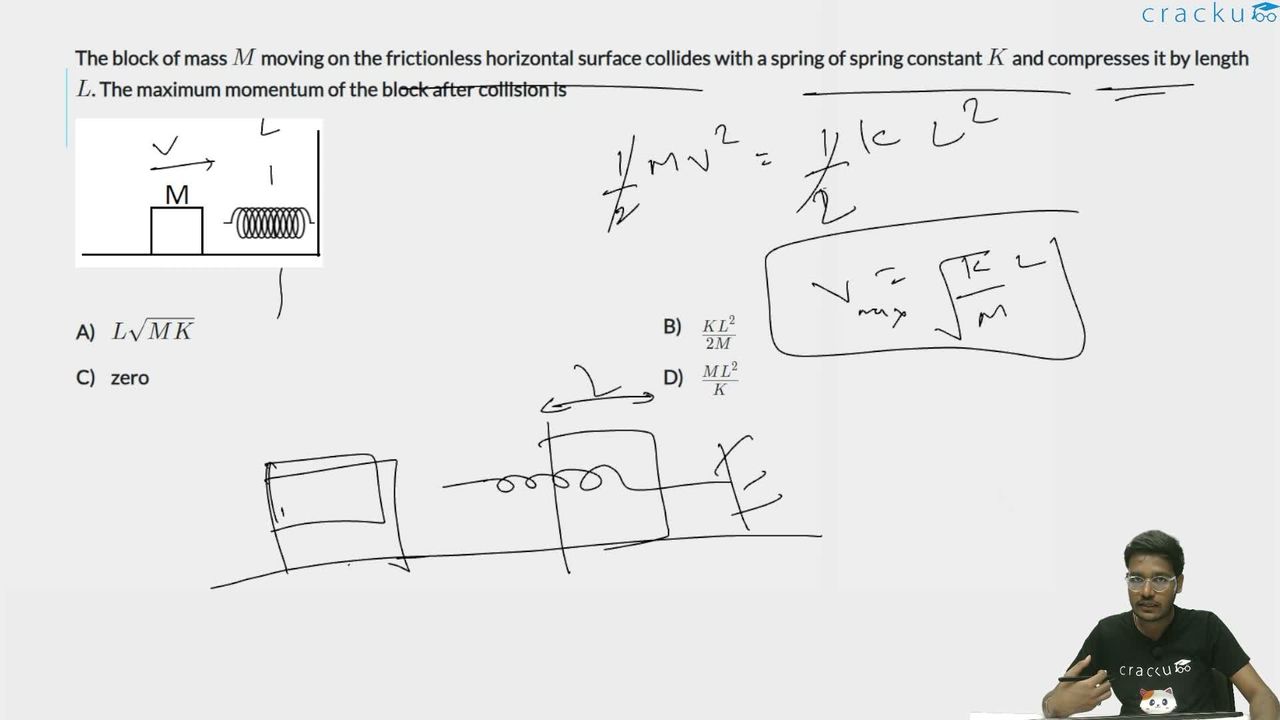

Video Solution
