Question 20

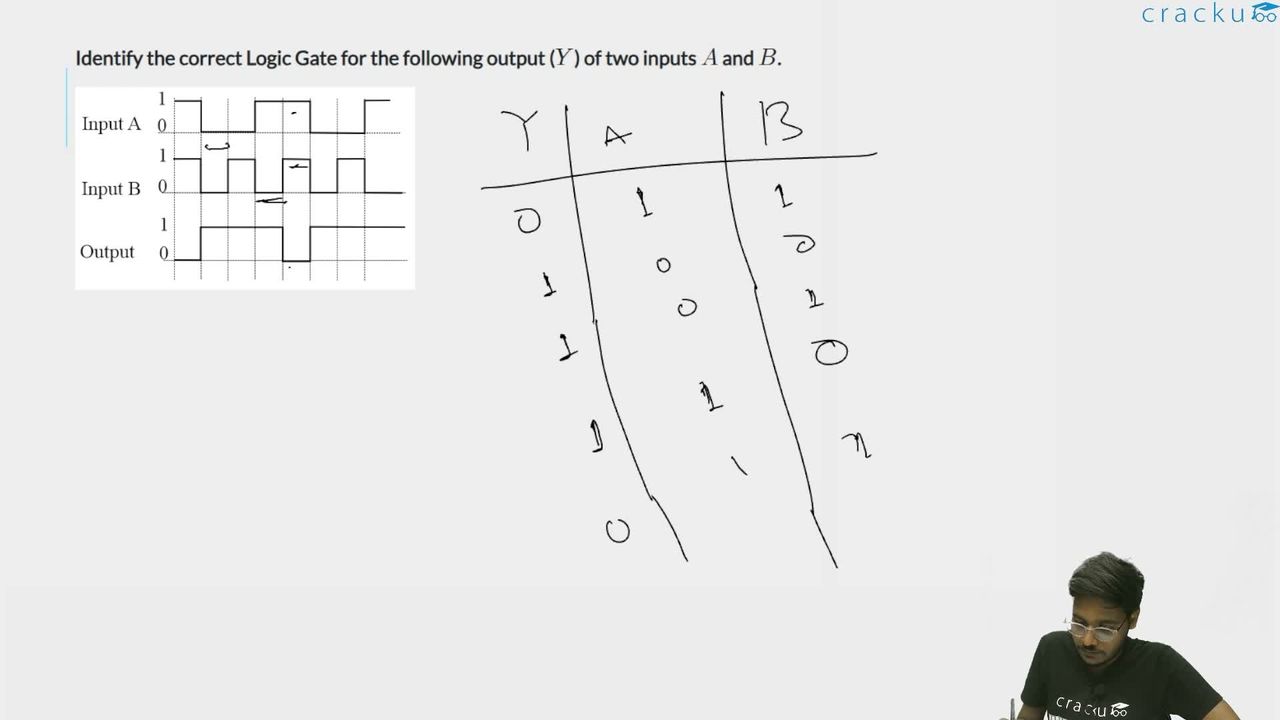

Identify the correct Logic Gate for the following output ($$Y$$) of two inputs $$A$$ and $$B$$.

Solution

Share


Observation:
Output is 0 only when both inputs are 1, otherwise 1.

Logic Gate:

$$Y=\overline{A\cdot B}$$

Final Answer:

NAND Gate
