Question 19

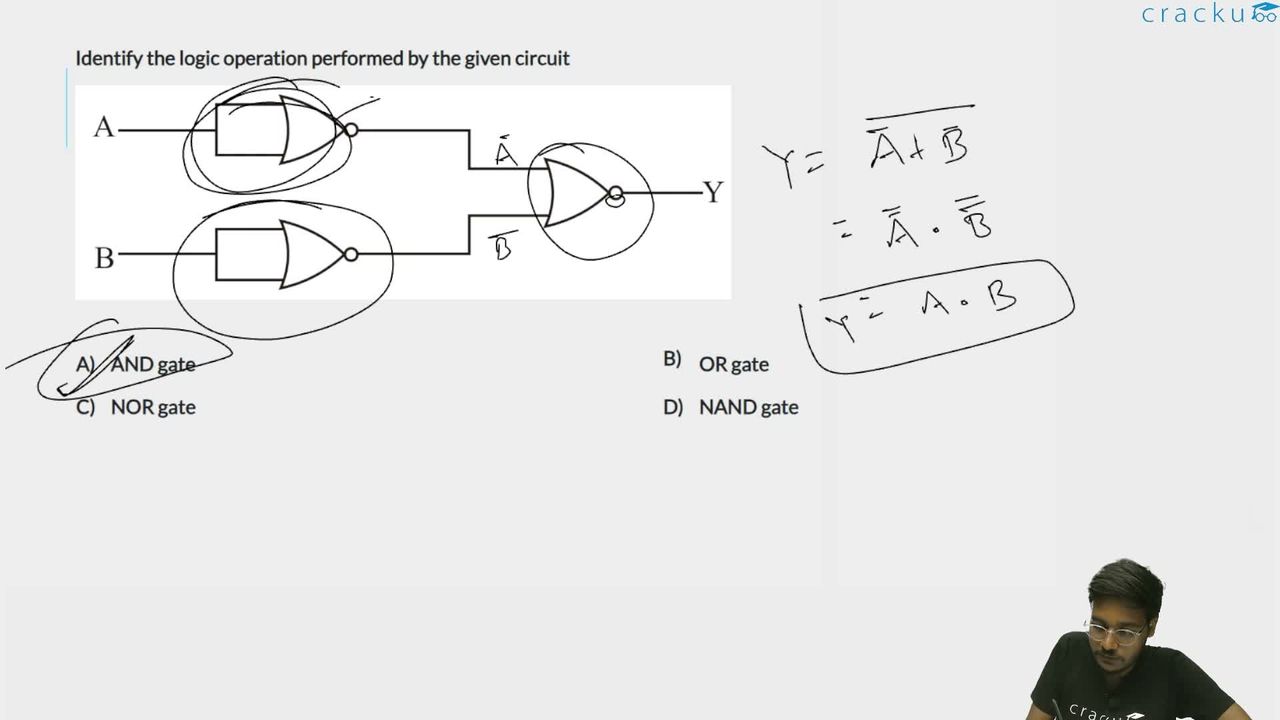

Identify the logic operation performed by the given circuit

Name: Identify the logic operation performed by the given circuit
Uploaded: 2026-06-25T16:58:03.775573+05:30
Duration: 1 min 21 s
Description: Identify the logic operation performed by the given circuit

Solution

$$\text{Output of upper NOR gate} = \overline{A + A} = \bar{A}$$

$$\text{Output of lower NOR gate} = \overline{B + B} = \bar{B}$$

Final output from the rightmost NOR gate: $$Y = \overline{\bar{A} + \bar{B}}$$

Applying De Morgan's law: $$Y = \overline{\overline{A}} \cdot \overline{\overline{B}} = A \cdot B$$
