NTA JEE Main 25th June 2022 Shift 2 - Physics

Two buses $$P$$ and $$Q$$ start from a point at the same time and move in a straight line and their positions are represented by $$x_P(t) = \alpha t + \beta t^2$$ and $$x_Q(t) = ft - t^2$$. At what time, both the buses have same velocity?

Given below are two statements. One is labelled as Assertion A and the other is labelled as Reason R.
Assertion A: Two identical balls A and B thrown with same velocity 'u' at two different angles with horizontal attained the same range R. If A and B reached the maximum height $$h_1$$ and $$h_2$$ respectively, then $$R = 4\sqrt{h_1 h_2}$$
Reason R: Product of said heights. $$h_1 h_2 = \frac{u^2\sin^2\theta}{2g} \cdot \frac{u^2\cos^2\theta}{2g}$$

A disc with a flat small bottom beaker placed on it at a distance $$R$$ from its center is revolving about an axis passing through the center and perpendicular to its plane with an angular velocity $$\omega$$. The coefficient of static friction between the bottom of the beaker and the surface of the disc is $$\mu$$. The beaker will revolve with the disc if :

For a particle in uniform circular motion, the acceleration $$\vec{a}$$ at any point $$P(R, \theta)$$ on the circular path of radius $$R$$ is (when $$\theta$$ is measured from the positive $$x$$-axis and $$v$$ is uniform speed):

A solid metallic cube having total surface area $$24$$ m$$^2$$ is uniformly heated. If its temperature is increased by $$10°$$C, calculate the increase in volume of the cube. (Given $$\alpha = 5.0 \times 10^{-4}$$ °C$$^{-1}$$).

A copper block of mass $$5.0$$ kg is heated to a temperature of $$500°$$C and is placed on a large ice block. What is the maximum amount of ice that can melt?
[Specific heat of copper : $$0.39$$ J g$$^{-1}$$ °C$$^{-1}$$ and latent heat of fusion of water : $$335$$ J g$$^{-1}$$]

The ratio of specific heats $$\frac{C_p}{C_v}$$ in terms of degree of freedom $$f$$ is given by :

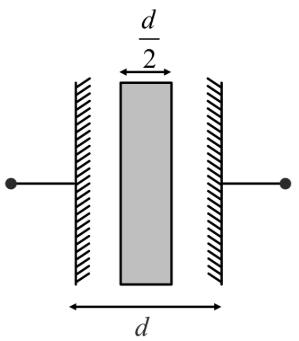

Two metallic plates form a parallel plate capacitor. The distance between the plate is '$$d$$'. A metal sheet of thickness $$\frac{d}{2}$$ and of area equal to area of each plate is introduced between the plates. What will be the ratio of the new capacitance to the original capacitance of the capacitor?

Two cells of the same EMF $$E$$ but different internal resistances, $$r_1$$ and $$r_2$$ are connected in series with an external resistance $$R$$ as shown in the figure. The terminal potential difference across the second cell is found to be zero. The external resistance $$R$$ must then be:

If $$n$$ represents the actual number of deflections in a converted galvanometer of resistance $$G$$ and shunt resistance $$S$$. Then the total current $$I$$ when its figure of merit is $$K$$ will be

Given below are two statements :
Statement - I : Susceptibilities of paramagnetic and ferromagnetic substances increase with decrease in temperature.
Statement - II : Diamagnetism is a result of orbital motions of electrons developing magnetic moments opposite to the applied magnetic field.
Choose the correct answer from the options given below

A long solenoid carrying a current produces a magnetic field $$B$$ along its axis. If the current is doubled and the number of turns per cm is halved, the new value of magnetic field will be equal to

A sinusoidal voltage $$V(t) = 210\sin 3000t$$ volt is applied to a series LCR circuit in which $$L = 10$$ mH, $$C = 25$$ $$\mu$$F and $$R = 100\Omega$$. The phase difference $$\Phi$$ between the applied voltage and resultant current will be

The electromagnetic waves travel in a medium at a speed of $$2.0 \times 10^8$$ m s$$^{-1}$$. The relative permeability of the medium is $$1.0$$. The relative permittivity of the medium will be

The interference pattern is obtained with two coherent light sources of intensity ratio $$4:1$$. And the ratio $$\frac{I_{max} + I_{min}}{I_{max} - I_{min}}$$ is $$\frac{5}{x}$$. Then, the value of $$x$$ will be equal to :

A light whose electric field vectors are completely removed by using a good polaroid, allowed to incident on the surface of the prism at Brewster's angle. Choose the most suitable option for the phenomenon related to the prism.

A proton, a neutron, an electron and an $$\alpha$$-particle have same energy. If $$\lambda_p, \lambda_n, \lambda_e$$ and $$\lambda_\alpha$$ are the de Broglie's wavelengths of proton, neutron, electron and $$\alpha$$ particle respectively, then choose the correct relation from the following

Which of the following figure represents the variation of $$\ln\frac{R}{R_0}$$ with $$\ln A$$ (if $$R$$ = radius of a nucleus and $$A$$ = its mass number)?

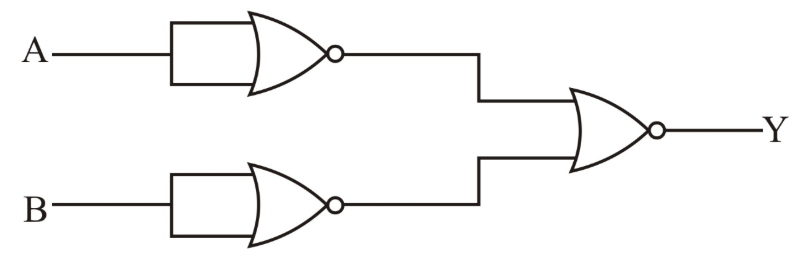

Identify the logic operation performed by the given circuit

Match List I with List II

For $$z = a^2 x^3 y^{\frac{1}{2}}$$, where '$$a$$' is a constant. If percentage error in measurement of '$$x$$' and '$$y$$' are $$4\%$$ and $$12\%$$, respectively, then the percentage error for '$$z$$' will be ______ %.

A curved in a level road has a radius $$75$$ m. The maximum speed of a car turning this curved road can be $$30$$ m s$$^{-1}$$ without skidding. If radius of curved road is changed to $$48$$ m and the coefficient of friction between the tyres and the road remains same, then maximum allowed speed would be ______ m s$$^{-1}$$.

A block of mass $$200$$ g is kept stationary on a smooth inclined plane by applying a minimum horizontal force $$F = \sqrt{x}$$ N as shown in figure. The value of $$x$$ = ______.

Moment of Inertia (M.I.) of four bodies having same mass $$M$$ and radius $$2R$$ are as follows
$$I_1$$ = M.I. of solid sphere about its diameter
$$I_2$$ = M.I. of solid cylinder about its axis
$$I_3$$ = M.I. of solid circular disc about its diameter
$$I_4$$ = M.I. of thin circular ring about its diameter
If $$2(I_2 + I_3) + I_4 = xI_1$$ then the value of $$x$$ will be ______.

Two satellites $$S_1$$ and $$S_2$$ are revolving in circular orbits around a planet with radius $$R_1 = 3200$$ km and $$R_2 = 800$$ km respectively. The ratio of speed of satellite $$S_1$$ to the speed of satellite $$S_2$$ in their respective orbits would be $$\frac{1}{x}$$ where $$x =$$ ______.

When a gas filled in a closed vessel is heated by raising the temperature by $$1°$$C, its pressure increases by $$0.4\%$$. The initial temperature of the gas is ______ K.

$$27$$ identical drops are charged at $$22$$ V each. They combine to form a bigger drop. The potential of the bigger drop will be ______ V.

The length of a given cylindrical wire is increased to double of its original length. The percentage increase in the resistance of the wire will be ______ %.

In a series LCR circuit, the inductance, capacitance and resistance are $$L = 100$$ mH, $$C = 100$$ $$\mu$$F and $$R = 10$$ $$\Omega$$ respectively. They are connected to an AC source of voltage $$220$$ V and frequency of $$50$$ Hz. The approximate value of current in the circuit will be ______ A.

In an experiment of CE configuration of $$n-p-n$$ transistor, the transfer characteristics are observed as given in figure. If the input resistance is $$200\Omega$$ and output resistance is $$60\Omega$$, the voltage gain in this experiment will be ______.
