Question 12

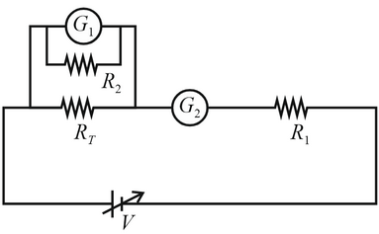

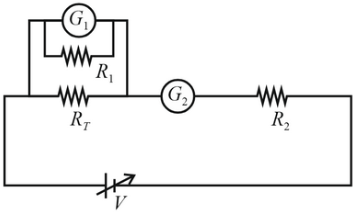

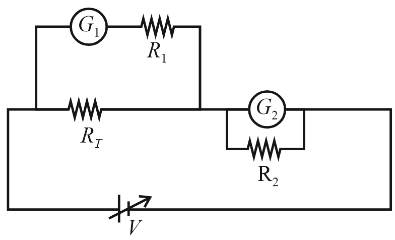

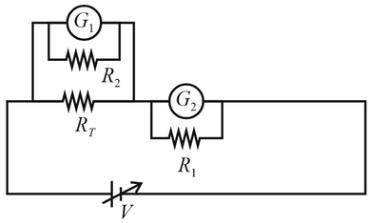

A student is provided with a variable voltage source $$V$$, a test resistor $$R_T = 10\Omega$$, two identical galvanometers $$G_1$$ and $$G_2$$ and two additional resistors, $$R_1 = 10M\Omega$$ and $$R_2 = 0.001\Omega$$. For conducting an experiment to verify ohm's law, the most suitable circuit is:
