Here is the complete step-by-step solution to the reaction sequence in LaTeX format.
The degree of unsaturation (Double Bond Equivalent) for $\text{C}_8\text{H}_{10}$ is:
$$\text{DBE} = 8 + 1 - \frac{10}{2} = 4$$
A $\text{DBE} = 4$ typically indicates a benzene ring. Since there are 8 carbons, the compound is an alkylbenzene. The structure that standard textbook problems generally target for this specific sequence (nitration followed by side-chain bromination and elimination) is ethylbenzene, $\text{C}_6\text{H}_5\text{CH}_2\text{CH}_3$.
When ethylbenzene reacts with a nitrating mixture, electrophilic aromatic substitution occurs. The ethyl group is an ortho/para-directing activator. Due to steric hindrance at the ortho-position, the major product is the para-isomer.
$$\text{C}_6\text{H}_5\text{CH}_2\text{CH}_3 \xrightarrow{\text{HNO}_3 / \text{H}_2\text{SO}_4} \textit{p}\text{-nitroethylbenzene (Compound A)}$$
When compound A reacts with Br2 in the presence of heat or light, free radical substitution takes place selectively at the benzylic carbon because the benzylic radical is highly stabilized by resonance with the aromatic ring.
$$p\text{-O}_2\text{N}-\text{C}_6\text{H}_4-\text{CH}_2\text{CH}_3 \xrightarrow{\text{Br}_2, \Delta} p\text{-O}_2\text{N}-\text{C}_6\text{H}_4-\text{CH(Br)CH}_3 \text{ (Compound B)}$$
When compound B is treated with alcoholic KOH (a strong base), an E2 elimination reaction occurs. The base abstracts a proton from the beta-carbon, expelling the bromide ion to form a stable conjugated alkene (a styrene derivative).
$$p\text{-O}_2\text{N}-\text{C}_6\text{H}_4-\text{CH(Br)CH}_3 \xrightarrow{\text{alcoholic KOH}} p\text{-O}_2\text{N}-\text{C}_6\text{H}_4-\text{CH}=\text{CH}_2 \text{ (Compound C)}$$

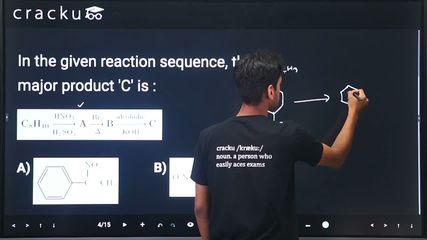

Click on the Email ☝️ to Watch the Video Solution
