Question 6

A slender uniform rod of mass $$M$$ and length $$l$$ is pivoted at one end so that it can rotate in a vertical plane (see figure). There is negligible friction at the pivot. The free end is held vertically above the pivot and then released. The angular acceleration of the rod when it makes an angle $$\theta$$ with the vertical is:

Net torque about the pivot on the rod = torque due to gravity

$$τ=Mg\times\ \frac{L}{2}\sin\theta\ $$

Also, $$τ=I\alpha\ $$

Moment of inertia for a rod about an axis passing through one of its ends is $$I=\frac{1}{3}ML^2$$

$$\therefore\ \frac{1}{3}ML^2\alpha\ =MG\frac{L}{2}\sin\theta\ $$

$$\therefore\ \alpha\ =\frac{3g}{2L}\sin\theta\ $$

Get AI Help

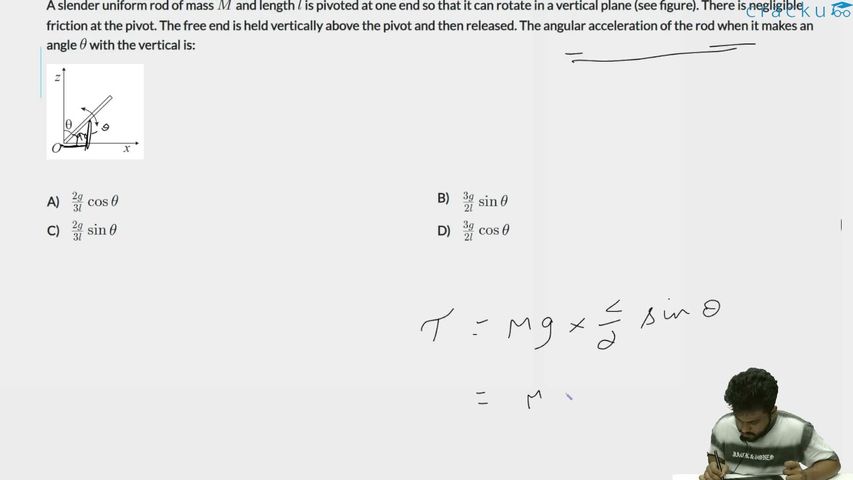

Video Solution
