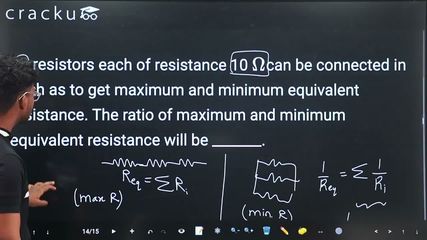

10 resistors each of resistance 10 $$\Omega$$ can be connected in such as to get maximum and minimum equivalent resistance. The ratio of maximum and minimum equivalent resistance will be _______.

Correct Answer: 100

10 resistors each of 10 $$\Omega$$.

Maximum resistance: All in series = $$10 \times 10 = 100$$ $$\Omega$$

Minimum resistance: All in parallel = $$\frac{10}{10} = 1$$ $$\Omega$$

Ratio = $$\frac{100}{1} = 100$$

The ratio is 100.
