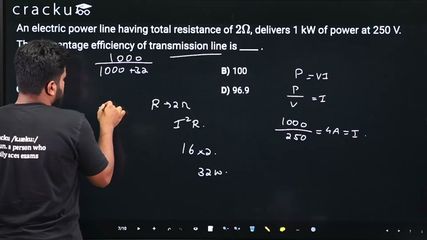

An electric power line having total resistance of $$2\Omega$$, delivers 1 kW of power at 250 V. The percentage efficiency of transmission line is ____ .

Power delivered = 1 kW = 1000 W at V = 250 V. Current $$I = P/V = 4$$ A.

Power loss = $$I^2 R = 16 \times 2 = 32$$ W.

Total power = $$1000 + 32 = 1032$$ W. Efficiency = $$1000/1032 \times 100 = 96.9\%$$.

The answer is Option 4: 96.9%.
