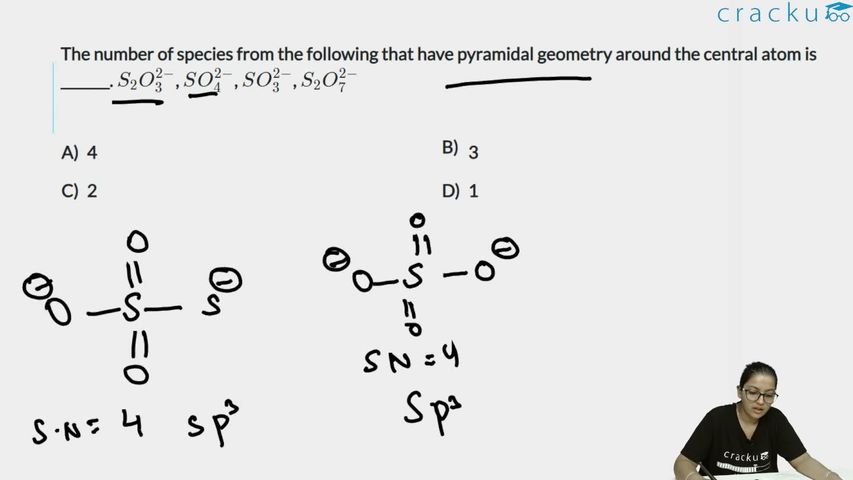

The number of species from the following that have pyramidal geometry around the central atom is _______. $$S_2O_3^{2-}$$, $$SO_4^{2-}$$, $$SO_3^{2-}$$, $$S_2O_7^{2-}$$
Count species with pyramidal geometry around the central atom from: $$S_2O_3^{2-}$$, $$SO_4^{2-}$$, $$SO_3^{2-}$$, $$S_2O_7^{2-}$$.
$$S_2O_3^{2-}$$ (thiosulphate):
The central sulfur atom is bonded to 3 oxygen atoms and 1 sulfur atom in a tetrahedral arrangement (similar to $$SO_4^{2-}$$). Not pyramidal.
$$SO_4^{2-}$$ (sulphate):
S is surrounded by 4 oxygen atoms. Geometry: tetrahedral. Not pyramidal.
$$SO_3^{2-}$$ (sulphite):
S has 3 bond pairs (to O atoms) + 1 lone pair. Electron geometry is tetrahedral, but molecular geometry is pyramidal (trigonal pyramidal). This is pyramidal.
$$S_2O_7^{2-}$$ (disulphate / pyrosulphate):
Two $$SO_4$$ tetrahedra share one oxygen. Each S is in a tetrahedral environment. Not pyramidal.
Only 1 species ($$SO_3^{2-}$$) has pyramidal geometry.
The correct answer is Option (4): 1.
