Question 34

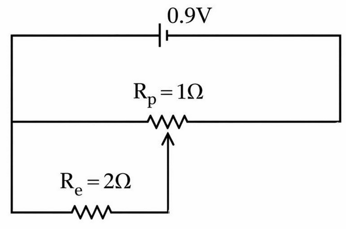

Sliding contact of a potentiometer is in the middle of the potentiometer wire having resistance $$R_p = 1 \Omega$$ as shown in the figure. An external resistance of $$R_e = 2 \Omega$$ is connected via the sliding contact. The electric current in the circuit is :
