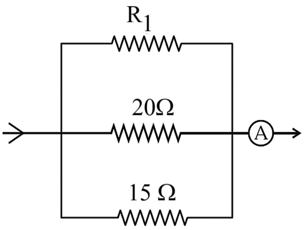

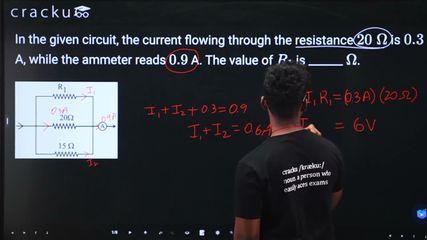

In the given circuit, the current flowing through the resistance $$20 \;\Omega$$ is $$0.3$$ A, while the ammeter reads $$0.9$$ A. The value of $$R_1$$ is ______ $$\Omega$$.

Correct Answer: 30
