NTA JEE Main 31st August 2021 Shift 2

For a body executing S.H.M.:
(a) Potential energy is always equal to its K.E.
(b) Average potential and kinetic energy over any given time interval are always equal.
(c) Sum of the kinetic and potential energy at any point of time is constant.
(d) Average K.E. in one time period is equal to average potential energy in one time period.
Choose the most appropriate option from the options given below:

Choose the incorrect statement:
(a) The electric lines of force entering into a Gaussian surface provide negative flux.
(b) A charge $$q$$ is placed at the centre of a cube. The flux through all the faces will be the same.
(c) In a uniform electric field net flux through a closed Gaussian surface containing no net charge, is zero.
(d) When an electric field is parallel to a Gaussian surface, it provides a finite non-zero flux.
Choose the most appropriate answer from the options given below:

The equivalent resistance of the given circuit between the terminals $$A$$ and $$B$$ is:

A current of 1.5 A is flowing through a triangle, of side 9 cm each. The magnetic field at the centroid of the triangle is:
(Assume that the current is flowing in the clockwise direction.)

A coil is placed in a magnetic field $$\vec{B}$$ as shown below:

A current is induced in the coil because $$\vec{B}$$ is:

The magnetic field vector of an electromagnetic wave is given by $$B = B_0\frac{\hat{i}+\hat{j}}{\sqrt{2}}\cos kz - \omega t$$ where $$\hat{i}$$, $$\hat{j}$$ represents unit vector along x and y-axis respectively. At $$t = 0$$ s, two electric charges $$q_1$$ of $$4\pi$$ coulomb and $$q_2$$ of $$2\pi$$ coulomb located at $$\left(0, 0, \frac{\pi}{k}\right)$$ and $$\left(0, 0, \frac{3\pi}{k}\right)$$, respectively, have the same velocity of $$0.5c\hat{i}$$, (where $$c$$ is the velocity of light). The ratio of the force acting on charge $$q_1$$ to $$q_2$$ is:

Consider two separate ideal gases of electrons and protons having same number of particles. The temperature of both the gases are same. The ratio of the uncertainty in determining the position of an electron to that of a proton is proportional to:

A free electron of 2.6 eV energy collides with a H$$^+$$ ion. This results in the formation of a hydrogen atom in the first excited state and a photon is released. Find the frequency of the emitted photon. (h = $$6.6 \times 10^{-34}$$ J s)

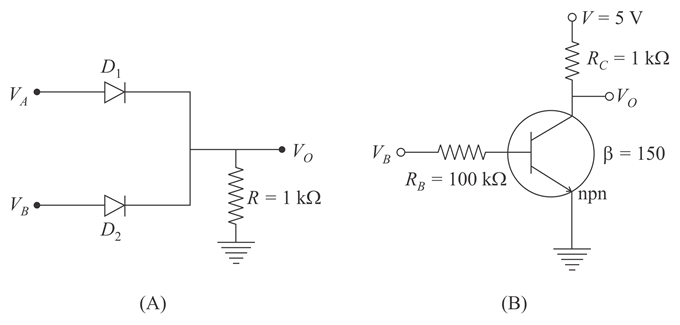

If $$V_A$$ and $$V_B$$ are the input voltages (either 5 V or 0 V) and $$V_0$$ is the output voltage then the two gates represented in the following circuits A and B are:

Statement I: To get a steady DC output from the pulsating voltage received from a full wave rectifier we can connect a capacitor across the output parallel to the load $$R_L$$.
Statement II: To get a steady DC output from the pulsating voltage received from a full wave rectifier we can connect an inductor in series with $$R_L$$.
In the light of the above statements, choose the most appropriate answer from the options given below:
